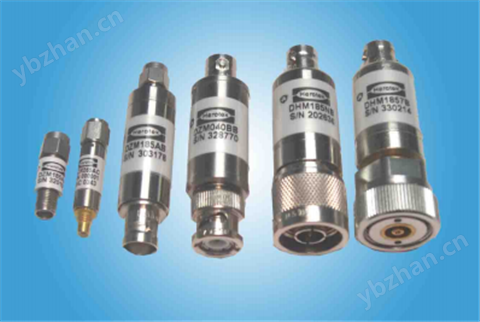

零偏置肖特基二極管檢測器 100 KHz to 50 GHz

返回列表頁

參考價

面議

具體成交價以合同協議為準

產品型號

品牌

廠商性質其他

所在地

在線詢價收藏產品

聯系方式：查看聯系方式

更新時間：2024-01-05 07:47:55瀏覽次數：395次

聯系我時，請告知來自儀表網

產品分類 品牌分類

  微波元器件

全部產品列表

暫無信息

深圳市立維創展科技有限公司

經營模式：其他

商鋪產品：9條

所在地區：

詢價 給他留言

產品簡介

重要參數 零偏置肖特基二極管檢測器特征?無需偏差?匹配輸入，實現的駐波比**?頻率響應極其平坦**?靈敏度（DZ系列）**（DZR和DZM系列）

詳細介紹

零偏置肖特基二極管檢測器應用

?精密測試設備

?變送器監控

?電源和信號監測

?雷達或制導系統

?實驗室測試

MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (? dB)	LOW LEVEL SENSITIVITY (mV / ?W)	CONNECTOR		SIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (? dB)	LOW LEVEL SENSITIVITY (mV / ?W)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZR124AA	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR124AC	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR185AA	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR185AC	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR265AA	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR265AC	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZM020AA	100 KHz - 2.0 GHz	1.3:1	0.1 (per 100 KHz) 0.3 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM020BB	100 KHz - 2.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM040AA	100 KHZ - 4.0 GHz				SMA (M)	SMA (F)	1.05	0.32	A
DZM040BB	100 KHZ - 4.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM124AA	10 MHz – 12.4 GHz	1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz)	0.2 (per octave) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM124AB					SMA (M)	BNC (F)	2.50	0.56	AB3
DZM124NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM185AA	10 MHz – 18.5 GHz	1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz)	0.2 (per octave to 8 GHz) 0.3 (for 10 MHz to 8 GHz) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM185AB					SMA (M)	BNC (F)	2.50	0.56	AB13
DZM185AB2					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM185AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM185NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM1857B					APC-7	BNC (F)	2.59	0.75	7B3

MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (? dB)	LOW LEVEL SENSITIVITY (mV / ?W)	CONNECTOR		SIIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (? dB)	LOW LEVEL SENSITIVITY (mV / ?W)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZM265AA	10 MHz-26.5 GHz	1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz)	0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM265AB					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM265AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM2653B					APC3.5 (M)	BNC (F)	1.89	0.39	3B3
DZM2653C					APC3.5 (M)	SMC (M)	1. 70	0.38	3C3
DZR400KA	10 MHz – 40 GHz	1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz)	0.4	K* (M) (2.9mm)	SMA (F)	1.30	0.32	C1
DZR400KB					K* (M) (2.9mm)	BNC (F)	1.89	0.39	KB3
DZR400KC					K* (M) (2.9mm)	SMC (M)	1.35	0.32	KC3
DZR50024A	10 MHz – 50 GHz	1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz)	0.5	2.4mm (M)	SMA (F)	1.32	0.32	24A3
DZR50024B					2.4mm (M)	BNC (F)	1.91	0.39	24B3
DZR50024C					2.4mm (M)	SMC (M)	1.36	0.32	24C3
DZ1018	1 GHz – 18.0 GHz	8.0:1 (Typical)	1.0 (Typical)	1.8	SMA (M)	SMA (F)	1.16	0.32	B
DZ1026	1 GHz – 26.0 GHz	8.0:1 (Typical)	1.5 (Typical)	1.6	SMA (M)	SMA (F)	1.16	0.32	B
