EPIN-HSK系列尼龍電纜防水接頭（M制，PG制，NPT制，G制）
EPIN電纜防水接頭系列 Cable Gland Series

1、內伸夾緊條片卡口范圍比較大
The clamping range i s l a rge because of the clip extending inwards and fastening.
2、具有專業技術的內嵌密封可達IP68
The imbedded hermetic seal with professional technology can reach IP68
3、梯形螺紋保證用力均勻
Acme thread guaranteeshomogeneity of strength

4、用于安裝密封圈的凹槽
Apply to the installation of the fluting of flat-sealing

電纜防水夾緊接頭主要用于對電纜夾緊、固定、防水、防塵。廣泛應用于控制柜、儀器儀表、燈具、機械設備、機車、電機馬達、工程等領域。我們可以同時提供灰白色（RAL7035），淺灰色（RAL7001），深灰色（RAL7037），黑色（RAL9005）和藍色（RAL5012）的電纜防水接頭以及防核輻射電纜防水接頭HSM/HSK-RA。
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipments, train, motors, projects etc.We can provide you with cable glands of white grey(RAL 7035), light grey(RAL 7001), deep grey(RAL 7037), black (RAL 9005) , blue (RAL 5012) and nuclear radiation-proof cable glands HSM/HSK-RA as well.

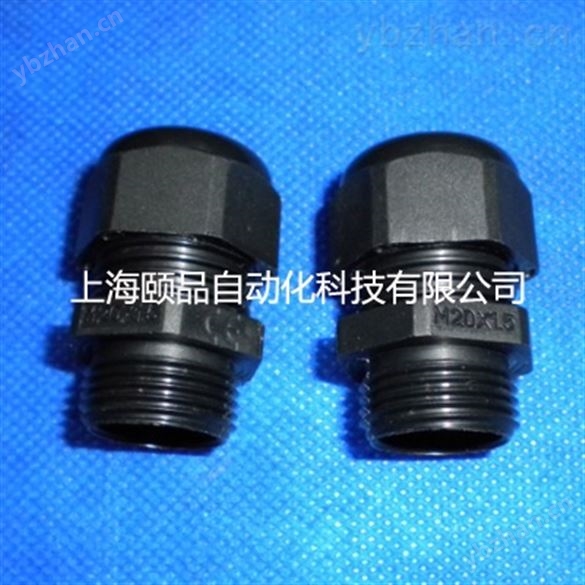

HSK 系列—尼龍電纜防水接頭 Plastic cable gland

□ 產品材料: 尼龍密封件材料:改性橡膠
□ 產品顏色: 灰白色(RAL 7035)，黑色(RAL 9005)
□ 防護等級: 在規定的卡口范圍內，并使用合適的O形密封圈，防護等級可以達到IP68
□ 溫度范圍: -40℃到100℃，短時間可以達到120℃
□ 阻燃等級: V2(UL94),不含鹵素、磷、鎘,通過RoHS測試，耐UV，通過抗老化測試
□ Material: Polyamide , Sealing:modified rubber
□ color: Grey white (RAL 7035), Black (RAL 9005)
□ Protection degree: Using suitable O-sealings within the clamping range,
its protection degree can reach IP68
□ Temperature Range: Min-40℃，Max100℃，Short-term120℃
□ Properties: V2(UL94), free of halogen, phosphor and cadmium,
passed RoHS UV-resistance, ageing-resistance certificates

物料編號	顏色	螺紋規格	卡口范圍	悶蓋外徑	螺紋長度	H	扳手尺寸	包裝單位
HSK-M	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-M12G	Grey	M12×1.5	3~6.5	12	8	20	15	100
HSK-M16G-H	Grey	M16×1.5	2.5~6	16	8	22	19	100
HSK-M16G	Grey	M16×1.5	4~8	16	8	22	19	100
HSK-M16G-D	Grey	M16×1.5	5~10	16	8	25	22	100
HSK-M18G	Grey	M18×1.5	5~10	18	8	25	22	100
HSK-M20G-H	Grey	M20×1.5	5~9	20	9	26.5	24	100
HSK-M20G	Grey	M20×1.5	6~12	20	9	26.5	24	100
HSK-M20G-D	Grey	M20×1.5	8~14	20	10	28	27	50
HSK-M22G-H	Grey	M22×1.5	6~12	22	10	28	27	50
HSK-M22G	Grey	M22×1.5	8~14	22	10	28	27	50
HSK-M24G-H	Grey	M24×1.5	6~12	24	10	28	27	50
HSK-M24G	Grey	M24×1.5	8~14	24	10	28	27	50
HSK-M25G-H	Grey	M25×1.5	11~16	25	11	31.5	33	50
HSK-M25G	Grey	M25×1.5	13~18	25	11	31.5	33	50
HSK-M27G-H	Grey	M27×2.0	11~16	27	11	31.5	33	50
HSK-M27G	Grey	M27×2.0	13~18	27	11	31.5	33	50
HSK-M30G-H	Grey	M30×2.0	11~16	30	11	31.5	33	50
HSK-M30G	Grey	M30×2.0	13~18	30	11	31.5	33	50
HSK-M32G-H	Grey	M32×1.5	14~21	32	11	39	42	25
HSK-M32G	Grey	M32×1.5	18~25	32	11	39	42	25
HSK-M33G	Grey	M33×2.0	18~25	33	11	39	42	25
HSK-M36G-H	Grey	M36×2.0	14~21	36	11	39	42	25
HSK-M36G	Grey	M36×2.0	18~25	36	11	39	42	25
HSK-M40G	Grey	M40×1.5	22~32	40	13	48.5	53	10
HSK-M42G	Grey	M42×2.0	22~32	42	13	46.5	53	10
HSK-M48G	Grey	M48×2.0	22~32	48	13	48.5	53	10
HSK-M50G	Grey	M50×1.5	30~38	50	15	47.3	60	10
HSK-M56G	Grey	M56×2.0	30~38	56	15	47.3	60	10
HSK-M60G	Grey	M60×2.0	37~44	60	15	47	65	10
HSK-M63G	Grey	M63×1.5	37~44	63	15	47	65	10
HSK-M64G	Grey	M64×2.0	37~44	64	15	47	65	10
HSK-M72G-H	Grey	M72×2.0	43~53	72	16	54	86	5
HSK-M72G	Grey	M72×2.0	51~57	72	16	54	86	5
HSK-M12B	Black	M12×1.5	3~6.5	12	8	20	15	100
HSK-M16B-H	Black	M16×1.5	2.5~6	16	8	22	19	100
HSK-M16B	Black	M16×1.5	4~8	16	8	22	19	100
HSK-M16B-D	Black	M16×1.5	5~10	16	8	25	22	100
HSK-M18B	Black	M18×1.5	5~10	18	8	25	22	100
HSK-M20B-H	Black	M20×1.5	5~9	20	9	26.5	24	100
HSK-M20B	Black	M20×1.5	6~12	20	9	26.5	24	100
HSK-M20B-D	Black	M20×1.5	8~14	20	10	28	27	50
HSK-M22B-H	Black	M22×1.5	6~12	22	10	28	27	50
HSK-M22B	Black	M22×1.5	8~14	22	10	28	27	50
HSK-M24B-H	Black	M24×1.5	6~12	24	10	28	27	50
HSK-M24B	Black	M24×1.5	8~14	24	10	28	27	50
HSK-M25B-H	Black	M25×1.5	11~16	25	11	31.5	33	50
HSK-M25B	Black	M25×1.5	13~18	25	11	31.5	33	50
HSK-M27B-H	Black	M27×2.0	11~16	27	11	31.5	33	50
HSK-M27B	Black	M27×2.0	13~18	27	11	31.5	33	50
HSK-M30B-H	Black	M30×2.0	11~16	30	11	31.5	33	50
HSK-M30B	Black	M30×2.0	13~18	30	11	31.5	33	50
HSK-M32B-H	Black	M32×1.5	14~21	32	11	39	42	25
HSK-M32B	Black	M32×1.5	18~25	32	11	39	42	25
HSK-M33B	Black	M33×2.0	18~25	33	11	39	42	25
HSK-M36B-H	Black	M36×2.0	14~21	36	11	39	42	25
HSK-M36B	Black	M36×2.0	18~25	36	11	39	42	25
HSK-M40B	Black	M40×1.5	22~32	40	13	48.5	53	10
HSK-M42B	Black	M42×2.0	22~32	42	13	46.5	53	10
HSK-M48B	Black	M48×2.0	22~32	48	13	48.5	53	10
HSK-M50B	Black	M50×1.5	30~38	50	15	47.3	60	10
HSK-M56B	Black	M56×2.0	30~38	56	15	47.3	60	10
HSK-M60B	Black	M60×2.0	37~44	60	15	47	65	10
HSK-M63B	Black	M63×1.5	37~44	63	15	47	65	10
HSK-M64B	Black	M64×2.0	37~44	64	15	47	65	10
HSK-M73B-H	Black	M72×2.0	43~53	72	16	54	86	5
HSK-M73B	Black	M72×2.0	51~57	72	16	54	86	5

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	包裝單位
Grey	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-M12G-L	G	M12×1.5	3~6.5	12	15	20	15	100
HSK-M16G-HL	G	M16×1.5	2.5~6	16	15	22	19	100
HSK-M16G-L	G	M16×1.5	4~8	16	15	22	19	100
HSK-M16G-DL	G	M16×1.5	5~10	16	15	25	22	100
HSK-M18G-L	G	M18×1.5	5~10	18	15	25	22	100
HSK-M20G-HL	G	M20×1.5	5~9	20	15	26.5	24	100
HSK-M20G-L	G	M20×1.5	6~12	20	15	26.5	24	100
HSK-M20G-DL	G	M20×1.5	8~14	20	15	28	27	50
HSK-M22G-HL	G	M22×1.5	6~12	22	15	28	27	50
HSK-M22G-L	G	M22×1.5	8~14	22	15	28	27	50
HSK-M24G-HL	G	M24×1.5	6~12	24	15	28	27	50
HSK-M24G-L	G	M24×1.5	8~14	24	15	28	27	50
HSK-M25G-HL	G	M25×1.5	11~16	25	15	31.5	33	50
HSK-M25G-L	G	M25×1.5	13~18	25	15	31.5	33	50
HSK-M32G-HL	G	M32×1.5	14~21	32	15	39	42	25
HSK-M32G-L	G	M32×1.5	18~25	32	15	39	42	25
HSK-M12B-L	B	M12×1.5	3~6.5	12	15	20	15	100
HSK-M16B-HL	B	M16×1.5	2.5~6	16	15	22	19	100
HSK-M16B-L	B	M16×1.5	4~8	16	15	22	19	100
HSK-M16B-DL	B	M16×1.5	5~10	16	15	25	22	100
HSK-M18B-L	B	M18×1.5	5~10	18	15	25	22	100
HSK-M20B-HL	B	M20×1.5	5~9	20	15	26.5	24	100
HSK-M20B-L	B	M20×1.5	6~12	20	15	26.5	24	100
HSK-M20B-DL	B	M20×1.5	8~14	20	15	28	27	50
HSK-M22B-HL	B	M22×1.5	6~12	22	15	28	27	50
HSK-M22B-L	B	M22×1.5	8~14	22	15	28	27	50
HSK-M24B-HL	B	M24×1.5	6~12	24	15	28	27	50
HSK-M24B-L	B	M24×1.5	8~14	24	15	28	27	50
HSK-M25B-HL	B	M25×1.5	11~16	25	15	31.5	33	50
HSK-M25B-L	B	M25×1.5	13~18	25	15	31.5	33	50
HSK-M32B-HL	B	M32×1.5	14~21	32	15	39	42	25
HSK-M32B-L	B	M32×1.5	18~25	32	15	39	42	25

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	包裝單位
HSK-N 60° HSK-G 55°	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-N 3/8G-H	G	NPT3/8″	4~8	17.1	11	25	22	100
HSK-N 3/8G	G	NPT3/8″	5~10	17.1	11	25	22	100
HSK-N 1/2G-H	G	NPT1/2″	5~9	21.2	13	26.5	24	100
HSK-N 1/2G	G	NPT1/2″	6~12	21.2	13	26.5	24	100
HSK-N 3/4G-H	G	NPT3/4″	11~16	26.6	13	31.5	33	50
HSK-N 3/4G	G	NPT3/4″	13~18	26.6	13	31.5	33	50
HSK-N 1G-H	G	NPT1″	14~21	33.2	16	39	42	25
HSK-N 1G	G	NPT1″	18~25	33.2	16	39	42	25
HSK-G 1/2G-H	G	G 1/2″	5~9	21	9	26.5	24	100
HSK-G 1/2G	G	G 1/2″	6~12	21	9	26.5	24	100
HSK-G 3/4G	G	G 3/4″	13~18	26.4	11	31.5	33	50
HSK-G 1G	G	G 1″	18~25	33.2	11	39	42	25
HSK-G 1 1/2G	G	G 1 1/2″	22~32	47.8	13	48.5	53	10
HSK-G 2G	G	G 2″	37-44	59.6	15	47	65	5
HSK-N 3/8B-H	B	NPT3/8″	4~8	17.1	11	25	22	100
HSK-N 3/8B	B	NPT3/8″	5~10	17.1	11	25	22	100
HSK-N 1/2B-H	B	NPT1/2″	5~9	21.2	13	26.5	24	100
HSK-N 1/2B	B	NPT1/2″	6~12	21.2	13	26.5	24	100
HSK-N 3/4B-H	B	NPT3/4″	11~16	26.6	13	31.5	33	50
HSK-N 3/4B	B	NPT3/4″	13~18	26.6	13	31.5	33	50
HSK-N 1B-H	B	NPT1″	14~21	33.2	16	39	42	25
HSK-N 1B	B	NPT1″	18~25	33.2	16	39	42	25
HSK-G 1/2B-H	B	G 1/2″	5~9	21	9	26.5	24	100
HSK-G 1/2B	B	G 1/2″	6~12	21	9	26.5	24	100
HSK-G 3/4B	B	G 3/4″	13~18	26.4	11	31.5	33	50
HSK-G 1B	B	G 1″	18~25	33.2	11	39	42	25
HSK-G 1 1/2B	B	G 1 1/2″	22~32	47.8	13	48.5	53	10
HSK-G 2B	B	G 2″	37-44	59.6	15	47	65	5

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	包裝單位
HSK-P HSK-P-L	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-P07G	G	PG7	3~6.5	12.5	8	20	15	100
HSK-P09G-H	G	PG9	2.5~6	15.2	8	22	19	100
HSK-P09G	G	PG9	4~8	15.2	8	22	19	100
HSK-P11G	G	PG11	5~10	18.6	8	25	22	100
HSK-P13.5G-H	G	PG13.5	5~9	20.4	9	26.5	24	100
HSK-P13.5G	G	PG13.5	6~12	20.4	9	26.5	24	100
HSK-P16G-H	G	PG16	6~12	22.5	10	28	27	50
HSK-P16G	G	PG16	8~14	22.5	10	28	27	50
HSK-P21G-H	G	PG21	11~16	28.3	11	31.5	33	50
HSK-P21G	G	PG21	13~18	28.3	11	31.5	33	50
HSK-P29G-H	G	PG29	14~21	37	11	39	42	25
HSK-P29G	G	PG29	18~25	37	11	39	42	25
HSK-P36G	G	PG36	22~32	47	13	48.5	53	10
HSK-P42G	G	PG42	30~38	54	15	47.3	60	10
HSK-P48G	G	PG48	37~44	59.3	15	47	65	5
HSK-P07B	B	PG7	3~6.5	12.5	8	20	15	100
HSK-P09B-H	B	PG9	2.5~6	15.2	8	22	19	100
HSK-P09B	B	PG9	4~8	15.2	8	22	19	100
HSK-P11B	B	PG11	5~10	18.6	8	25	22	100
HSK-P13.5B-H	B	PG13.5	5~9	20.4	9	26.5	24	100
HSK-P13.5B	B	PG13.5	6~12	20.4	9	26.5	24	100
HSK-P16B-H	B	PG16	6~12	22.5	10	28	27	50
HSK-P16B	B	PG16	8~14	22.5	10	28	27	50
HSK-P21B-H	B	PG21	11~16	28.3	11	31.5	33	50
HSK-P21B	B	PG21	13~18	28.3	11	31.5	33	50
HSK-P29B-H	B	PG29	14~21	37	11	39	42	25
HSK-P29B	B	PG29	18~25	37	11	39	42	25
HSK-P36B	B	PG36	22~32	47	13	48.5	53	10
HSK-P42B	B	PG42	30~38	54	15	47.3	60	10
HSK-P48B	B	PG48	37~44	59.3	15	47	65	5
HSK-P07G-L	G	PG7	3~6.5	12.5	15	20	15	100
HSK-P09G-HL	G	PG9	2.5~6	15.2	15	22	19	100
HSK-P09G-L	G	PG9	4~8	15.2	15	22	19	100
HSK-P11G-L	G	PG11	5~10	18.6	15	25	22	100
HSK-P13.5G-HL	G	PG13.5	5~9	20.4	15	26.5	24	100
HSK-P13.5G-L	G	PG13.5	6~12	20.4	15	26.5	24	100
HSK-P16G-HL	G	PG16	6~12	22.5	15	28	27	50
HSK-P16G-L	G	PG16	8~14	22.5	15	28	27	50
HSK-P21G-HL	G	PG21	11~16	28.3	15	31.5	33	50
HSK-P21G-L	G	PG21	13~18	28.3	15	31.5	33	50
HSK-P29G-HL	G	PG29	14~21	37	15	39	42	25
HSK-P29G-L	G	PG29	18~25	37	15	39	42	25
HSK-P07B-L	B	PG7	3~6.5	12.5	15	20	15	100
HSK-P09B-HL	B	PG9	2.5~6	15.2	15	22	19	100
HSK-P09B-L	B	PG9	4~8	15.2	15	22	19	100
HSK-P11B-L	B	PG11	5~10	18.6	15	25	22	100
HSK-P13.5B-HL	B	PG13.5	5~9	20.4	15	26.5	24	100
HSK-P13.5B-L	B	PG13.5	6~12	20.4	15	26.5	24	100
HSK-P16B-HL	B	PG16	6~12	22.5	15	28	27	50
HSK-P16B-L	B	PG16	8~14	22.5	15	28	27	50
HSK-P21B-HL	B	PG21	11~16	28.3	15	31.5	33	50
HSK-P21B-L	B	PG21	13~18	28.3	15	31.5	33	50
HSK-P29B-HL	B	PG29	14~21	37	15	39	42	25
HSK-P29B-L	B	PG29	18~25	37	15	39	42	25

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	包裝單位
HSK-P/nxd	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-P09G/2x3	G	PG9	2×3	15.2	8	22	19	100
*HSK-P09G/4x1.4	G	PG9	4×1.4	15.2	8	22	19	100
*HSK-P11G/2x3	G	PG11	2×3	18.6	8	25	22	100
*HSK-P11G/3x3	G	PG11	3×3	18.6	8	25	22	100
*HSK-P11G/2x4	G	PG11	2×4	18.6	8	25	22	100
HSK-P13.5G/2x5	G	PG13.5	2×5	20.4	9	26.5	24	100
HSK-P13.5G/6x2	G	PG13.5	6×2	20.4	9	26.5	24	100
HSK-P13.5G/3x4	G	PG13.5	3×4	20.4	9	26.5	24	100
HSK-P13.5G/6x3	G	PG13.5	6×3	20.4	9	26.5	24	100
*HSK-P16G/2x6	G	PG16	2×6	22.5	10	28	27	50
*HSK-P16G/3x3	G	PG16	3×3	22.5	10	28	27	50
HSK-P16G/3x4	G	PG16	3×4	22.5	10	28	27	50
*HSK-P16G/3x6.5	G	PG16	3×6.5	22.5	10	28	27	50
*HSK-P16G/4x4	G	PG16	4×4	22.5	10	28	27	50
*HSK-P16G/5x4	G	PG16	5×4	22.5	10	28	27	50
*HSK-P16G/6x4	G	PG16	6×4	22.5	10	28	27	50
HSK-P21G/2x8	G	PG21	2×8	28.3	11	31.5	33	50
HSK-P21G/3x7	G	PG21	3×7	28.3	11	31.5	33	50
HSK-P21G/4x6	G	PG21	4×6	28.3	11	31.5	33	50
HSK-P29G/4x9	G	PG29	4×9	37	11	39	42	25
HSK-P29G/6x6.5	G	PG29	6×6.5	37	11	39	42	25
HSK-P36G/2x15	G	PG36	2×15	47	13	48.5	53	10
HSK-P36G/5x9	G	PG36	5×9	47	13	48.5	53	10
*HSK-P36G/6x8	G	PG36	6×8	47	13	48.5	53	10
HSK-P36G/7x9	G	PG36	7×9	47	13	48.5	53	10
*HSK-P48G/3x18	G	PG48	3×18	59.3	15	47	65	5
HSK-P48G/6x12	G	PG48	6×12	59.3	15	47	65	5
*HSK-P48G/8x10	G	PG48	8×10	59.3	15	47	65	5
HSK-P09B/2x3	B	PG9	2×3	15.2	8	22	19	100
HSK-P09B/4x1.4	B	PG9	4×1.4	15.2	8	22	19	100
HSK-P11B/2x3	B	PG11	2×3	18.6	8	25	22	100
HSK-P11B/3x3	B	PG11	3×3	18.6	8	25	22	100
HSK-P11B/2x4	B	PG11	2×4	18.6	8	25	22	100
HSK-P13.5B/2x5	B	PG13.5	2×5	20.4	9	26.5	24	100
HSK-P13.5B/6x2	B	PG13.5	6×2	20.4	9	26.5	24	100
HSK-P13.5B/3x4	B	PG13.5	3×4	20.4	9	26.5	24	100
HSK-P13.5B/6x3	B	PG13.5	6×3	20.4	9	26.5	24	100
HSK-P16B/2x6	B	PG16	2×6	22.5	10	28	27	50
HSK-P16B/3x3	B	PG16	3×3	22.5	10	28	27	50
HSK-P16B/3x4	B	PG16	3×4	22.5	10	28	27	50
HSK-P16B/3x6.5	B	PG16	3×6.5	22.5	10	28	27	50
HSK-P16B/4x4	B	PG16	4×4	22.5	10	28	27	50
HSK-P16B/5x4	B	PG16	5×4	22.5	10	28	27	50
HSK-P16B/6x4	B	PG16	6×4	22.5	10	28	27	50
HSK-P21B/2x8	B	PG21	2×8	28.3	11	31.5	33	50
HSK-P21B/3x7	B	PG21	3×7	28.3	11	31.5	33	50
HSK-P21B/4x6	B	PG21	4×6	28.3	11	31.5	33	50
HSK-P29B/4x9	B	PG29	4×9	37	11	39	42	25
HSK-P29B/6x6.5	B	PG29	6×6.5	37	11	39	42	25
HSK-P36B/2x15	B	PG36	2×15	47	13	48.5	53	10
HSK-P36B/5x9	B	PG36	5×9	47	13	48.5	53	10
HSK-P36B/6x8	B	PG36	6×8	47	13	48.5	53	10
HSK-P36B/7x9	B	PG36	7×9	47	13	48.5	53	10
HSK-P48B/3x18	B	PG48	3×18	59.3	15	47	65	5
HSK-P48B/6x12	B	PG48	6×12	59.3	15	47	65	5
HSK-P48B/8x10	B	PG48	8×10	59.3	15	47	65	5

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	包裝單位
HSK-M/nxd	G&B	Dimension	mm	mm	mm	mm	mm	units
HSK-M16G/2x3	G	M16×1.5	2×3	16	8	22	19	100
*HSK-M16G/4x1.4	G	M16×1.5	4×1.4	16	8	22	19	100
*HSK-M18G/2x3	G	M18×1.5	2×3	18	8	25	22	100
*HSK-M18G/2x4	G	M18×1.5	2×4	18	8	25	22	100
*HSK-M18G/3x3	G	M18×1.5	3×3	18	8	25	22	100
HSK-M20G/2x5	G	M20×1.5	2×5	20	9	26.5	24	100
HSK-M20G/6x2	G	M20×1.5	6×2	20	9	26.5	24	100
HSK-M20G/3x4	G	M20×1.5	3×4	20	9	26.5	24	100
HSK-M20G/6x3	G	M20×1.5	6×3	20	9	26.5	24	100
*HSK-M24G/2x6	G	M24×1.5	2×6	24	10	28	27	50
*HSK-M24G/3x3	G	M24×1.5	3×3	24	10	28	27	50
HSK-M24G/3x4	G	M24×1.5	3×4	24	10	28	27	50
*HSK-M24G/3x6.5	G	M24×1.5	3×6.5	24	10	28	27	50
*HSK-M24G/4x4	G	M24×1.5	4×4	24	10	28	27	50
*HSK-M24G/5x4	G	M24×1.5	5×4	24	10	28	27	50
*HSK-M24G/6x4	G	M24×1.5	6×4	24	10	28	27	50
HSK-M25G/2x8	G	M25×1.5	2×8	25	11	31.5	33	50
HSK-M25G/3x7	G	M25×1.5	3×7	25	11	31.5	33	50
HSK-M25G/4x6	G	M25×1.5	4×6	25	11	31.5	33	50
HSK-M32G/4x9	G	M32×1.5	4×9	32	11	39	42	25
HSK-M32G/6x6.5	G	M32×1.5	6×6.5	32	11	39	42	25
HSK-M40G/2x15	G	M40×1.5	2×15	40	13	48.5	53	10
HSK-M40G/5x9	G	M40×1.5	5×9	40	13	48.5	53	10
*HSK-M40G/6x8	G	M40×1.5	6×8	40	13	48.5	53	10
HSK-M40G/7x9	G	M40×1.5	7×9	40	13	48.5	53	10
*HSK-M63G/3x18	G	M63×1.5	3×18	63	15	47	65	5
HSK-M63G/6x12	G	M63×1.5	6×12	63	15	47	65	5
*HSK-M63G/8x10	G	M63×1.5	8×10	63	15	47	65	5
HSK-M16B/2x3	B	M16×1.5	2×3	16	8	22	19	100
*HSK-M16B/4x1.4	B	M16×1.5	4×1.4	16	8	22	19	100
*HSK-M18B/2x3	B	M18×1.5	2×3	18	8	25	22	100
*HSK-M18B/2x4	B	M18×1.5	2×4	18	8	25	22	100
*HSK-M18B/3x3	B	M18×1.5	3×3	18	8	25	22	100
HSK-M20B/2x5	B	M20×1.5	2×5	20	9	26.5	24	100
HSK-M20B/6x2	B	M20×1.5	6×2	20	9	26.5	24	100
HSK-M20B/3x4	B	M20×1.5	3×4	20	9	26.5	24	100
HSK-M20B/6x3	B	M20×1.5	6×3	20	9	26.5	24	100
*HSK-M24B/2x6	B	M24×1.5	2×6	24	10	28	27	50
*HSK-M24B/3x3	B	M24×1.5	3×3	24	10	28	27	50
HSK-M24B/3x4	B	M24×1.5	3×4	24	10	28	27	50
*HSK-M24B/3x6.5	B	M24×1.5	3×6.5	24	10	28	27	50
*HSK-M24B/4x4	B	M24×1.5	4×4	24	10	28	27	50
*HSK-M24B/5x4	B	M24×1.5	5×4	24	10	28	27	50
*HSK-M24B/6x4	B	M24×1.5	6×4	24	10	28	27	50
HSK-M25B/2x8	B	M25×1.5	2×8	25	11	31.5	33	50
HSK-M25B/3x7	B	M25×1.5	3×7	25	11	31.5	33	50
HSK-M25B/4x6	B	M25×1.5	4×6	25	11	31.5	33	50
HSK-M32B/4x9	B	M32×1.5	4×9	32	11	39	42	25
HSK-M32B/6x6.5	B	M32×1.5	6×6.5	32	11	39	42	25
HSK-M40B/2x15	B	M40×1.5	2×15	40	13	48.5	53	10
HSK-M40B/5x9	B	M40×1.5	5×9	40	13	48.5	53	10
*HSK-M40B/6x8	B	M40×1.5	6×8	40	13	48.5	53	10
HSK-M40B/7x9	B	M40×1.5	7×9	40	13	48.5	53	10
*HSK-M63B/3x18	B	M63×1.5	3×18	63	15	47	65	5
HSK-M63B/6x12	B	M63×1.5	6×12	63	15	47	65	5
*HSK-M63B/8x10	B	M63×1.5	8×10	63	15	47	65	5

產品編碼	顏色	螺紋規格	卡口范圍	螺紋外徑	螺紋長度	H	扳手尺寸	長度	包裝單位
HSK-F-N	G&B	Dimension	mm	mm	mm	mm	mm	mm	units
HSK-F-NPT3/8″G	G	NPT3/8″	4～8	17.1	15	48	22	63	50
HSK-F-NPT1/2″G	G	NPT1/2	6～12	21.3	13	77	24	90	50
HSK-F-NPT1/2″G-D	G	NPT1/2	10～14	21.3	13	87	27	100	25
HSK-F-NPT3/4″G	G	NPT3/4	13～18	26.7	14	100	33	114	25
HSK-F-NPT3/8″B	B	NPT3/8″	4～8	17.1	15	48	22	63	50
HSK-F-NPT1/2″B	B	NPT1/2	6～12	21.3	13	77	24	90	50
HSK-F-NPT1/2″B-D	B	NPT1/2	10～14	21.3	13	87	27	100	25
HSK-F-NPT3/4″B	B	NPT3/4	13～18	26.7	14	100	33	114	25
