SIP Series – Model 32

FEATURES
Low Cost
Miniature DIP
Gage Pressure
Small Foot Print
Improved Linearity

APPLICATIONS
Medical Equipments
White Goods
Industrial P/I
Process Control






DESCRIPTION

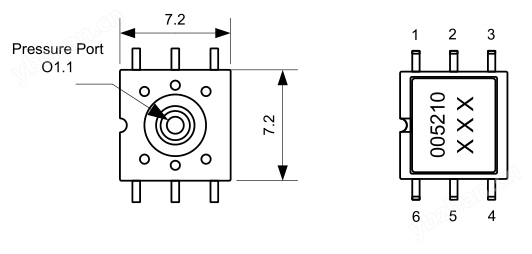

The Model 32 of SIP Series are uncompensated hi-performance pressure die in 6-pin plastic DIP package. It will give high level precise output when pressure is applied to the molded pressure port.
The sensor is optimized for use in the high volume applications, such like portable blood pressure monitor, electronic control air mattress or a wide variety of pneumatic applications requiring low cost, simple air connection.
To furnish maximum flexibility, the sensor can be offered based on custom features to obtain direct replacement on existing application. Please cotact factory for detail

Parameters	Min	Typ	Max	Unit
Excitation Voltage		5		V
Pressure Range	0		5	psi
Offset	-30	0	30	mV
Span	40	60	80	mV
Bridge Impedance	4	5	6	kohm
Linearity NOTE1		±0.3		%FS
TC - Span NOTE2		-19.5		%FS
TC - Offset NOTE2		±7		%FS
Hysteresis NOTE2		0.2		%FS
Temp - Operating	-20		85	°C
Temp - Storage	-40		125	°C
Over Pressure			3X	FS

.


Notes:
1. Best Fit Straight Line
2. Temperature coefficient is measured from 0 °C to 50 °C
3. Wetted material containing RTV, PA and siliocn
