特點：

1.      量程：500-20klb，250-5000kg

2.      高側向承載力

3.      化學鍍鎳合金鋼

4.      防護等級為IP67

5.      NTEP Class III 5000M認證，包括：SQB, SQB-F and SQB-SS，量程為 1K to 10Klb

6.      SQB-SS為不銹鋼材質

可選：

1.      FM相關認證

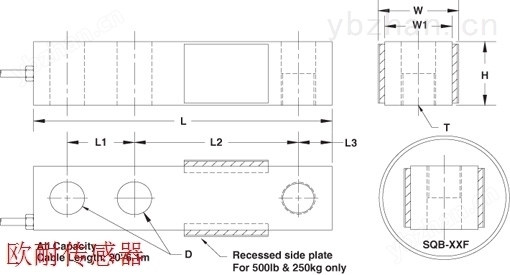

外型尺寸：

應用：

1.      汽車衡/軌道衡，筒倉/料斗/料罐稱重，平臺秤（多只傳感器），叉車秤，包裝機械，計量/灌裝，皮帶秤/輸送機

Model SQB

Single-Ended Beam

Vishay Celtron

FEATURES

Capacities: 500 to 20Klb, 250 to 5000kg

High side-load tolerance

Electroless nickel-plated-alloy tool steel

NTEP Class III 5000M for SQB, SQB-F and SQB-SS available from 1K to 10Klb

SQB-SS stainless steel construction

OPTIONAL FEATURE

FM approval available

DESCRIPTION

SQB is a single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage.

APPLICATIONS

Truck/ Rail scales

Silo/ Hopper/Tank weighing

Platform scales (multiple load cells)

Pallet truck scales

Packaging machines
